Fitting a Hill Function in R

The first dollar spent in a marketing effort is always the highest ROI and it diminishes it’s retrun from there and gets worse depending on the channel and season. This shape is beautifully made by the Hill Function.

1. The Hill Function (Generative Form)

A typical Hill function:

\[ y = \alpha \cdot \frac{x^n}{k^n + x^n} \]

α — Maximum height (how tall the curve gets)
k — Midpoint (where it bends)
n — Hill coefficient (curvature / steepness)

Inside an MMM, the Hill function becomes the functional form for the “response curve” for each marketing channel. It looks something like this:

sales ~ normal( sum(mu_j) + seasonality + promos + trend, sigma )

Let’s work through an example of what that would look like.

2. Simulate Some Data (“Before modeling, simulate the model” — McElreath)

library(tidyverse)

── Attaching core tidyverse packages ──────────────────────── tidyverse 2.0.0 ──
✔ dplyr     1.1.4     ✔ readr     2.1.5
✔ forcats   1.0.0     ✔ stringr   1.5.2
✔ ggplot2   4.0.0     ✔ tibble    3.3.0
✔ lubridate 1.9.4     ✔ tidyr     1.3.1
✔ purrr     1.1.0
── Conflicts ────────────────────────────────────────── tidyverse_conflicts() ──
✖ dplyr::filter() masks stats::filter()
✖ dplyr::lag()    masks stats::lag()
ℹ Use the conflicted package (<http://conflicted.r-lib.org/>) to force all conflicts to become errors

set.seed(2025)

# True parameters
alpha_true <- 10
k_true     <- 3
n_true     <- 2

# Predictor
x <- seq(0, 30, length.out = 1e2)

# Hill function
hill <- function(x, alpha, k, n) {
  alpha * (x^n / (k^n + x^n))
}

y <- hill(x, alpha_true, k_true, n_true) + rnorm(length(x), 0, 0.5)

df <- tibble(x, y)

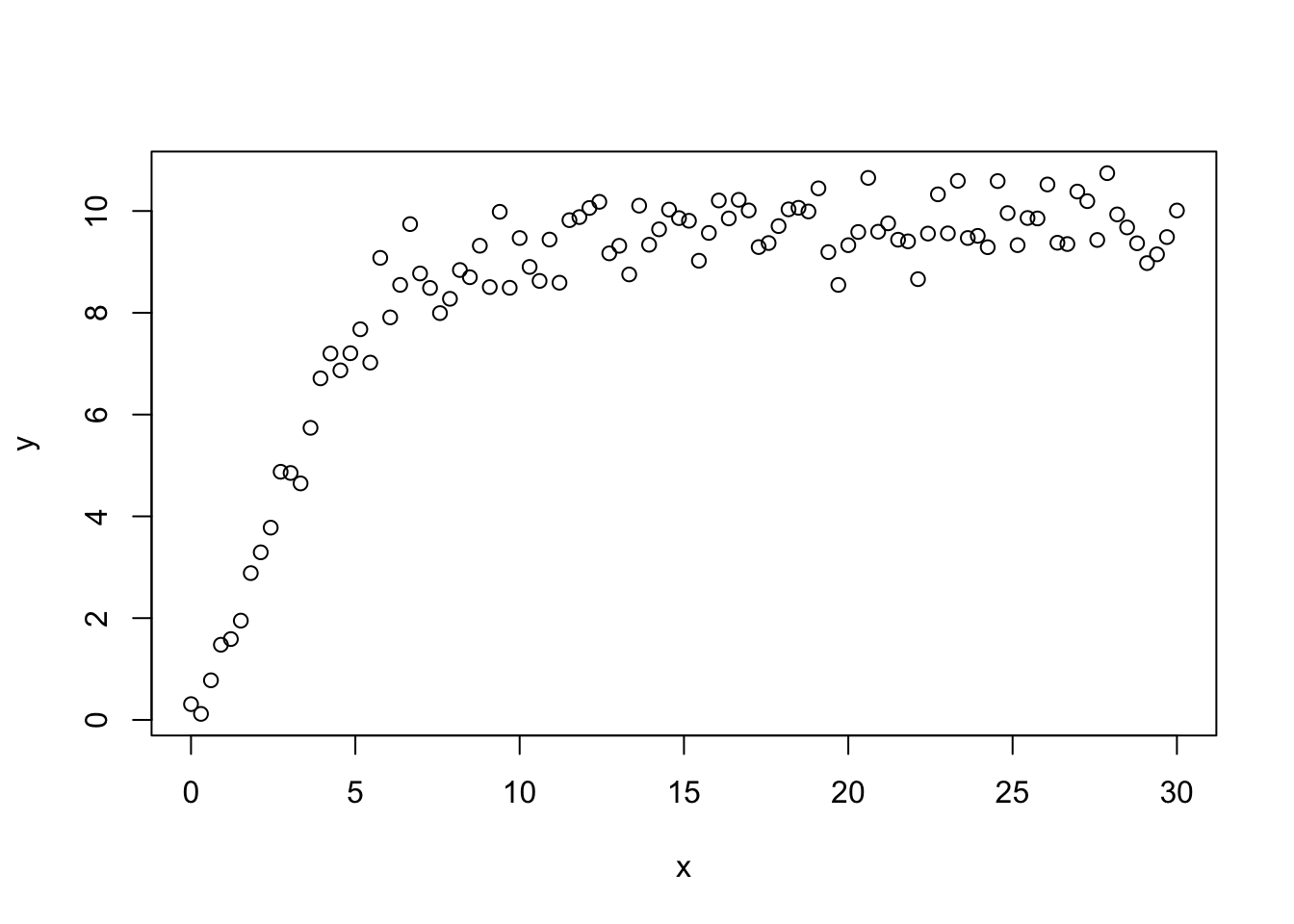

plot(df)

3. Fit the Hill Model Using r `brms::brm`

brm handles nonlinear formulas.

library(brms)

Loading required package: Rcpp

Loading 'brms' package (version 2.22.0). Useful instructions
can be found by typing help('brms'). A more detailed introduction
to the package is available through vignette('brms_overview').


Attaching package: 'brms'

The following object is masked from 'package:stats':

    ar

hill_model <- brm(
  bf(
    y ~ alpha * x^n / (k^n + x^n), ##hill function
    alpha + k + n ~ 1, ##model params  the ~ `1 is “Model each nonlinear parameter as its own intercept (no varying effects).”
    nl = TRUE #switches brms into nonlinear model
  ),
  data = df,
  family = gaussian(),
  prior = c(
    prior(normal(80, 3), nlpar = "alpha"), #max saturation level
    prior(normal(3, 2), nlpar = "k"), #half-max point - controls where the curve reaches 50% of a
    prior(normal(2, 1), nlpar = "n") # hill coefficient (steepness)
  ),
  iter = 2000,
  chains = 4,
  cores = 4
)

Compiling Stan program...

Trying to compile a simple C file

Running /Library/Frameworks/R.framework/Resources/bin/R CMD SHLIB foo.c
using C compiler: ‘Apple clang version 17.0.0 (clang-1700.0.13.5)’
using SDK: ‘MacOSX15.5.sdk’
clang -arch arm64 -I"/Library/Frameworks/R.framework/Resources/include" -DNDEBUG   -I"/Library/Frameworks/R.framework/Versions/4.4-arm64/Resources/library/Rcpp/include/"  -I"/Library/Frameworks/R.framework/Versions/4.4-arm64/Resources/library/RcppEigen/include/"  -I"/Library/Frameworks/R.framework/Versions/4.4-arm64/Resources/library/RcppEigen/include/unsupported"  -I"/Library/Frameworks/R.framework/Versions/4.4-arm64/Resources/library/BH/include" -I"/Library/Frameworks/R.framework/Versions/4.4-arm64/Resources/library/StanHeaders/include/src/"  -I"/Library/Frameworks/R.framework/Versions/4.4-arm64/Resources/library/StanHeaders/include/"  -I"/Library/Frameworks/R.framework/Versions/4.4-arm64/Resources/library/RcppParallel/include/"  -I"/Library/Frameworks/R.framework/Versions/4.4-arm64/Resources/library/rstan/include" -DEIGEN_NO_DEBUG  -DBOOST_DISABLE_ASSERTS  -DBOOST_PENDING_INTEGER_LOG2_HPP  -DSTAN_THREADS  -DUSE_STANC3 -DSTRICT_R_HEADERS  -DBOOST_PHOENIX_NO_VARIADIC_EXPRESSION  -D_HAS_AUTO_PTR_ETC=0  -include '/Library/Frameworks/R.framework/Versions/4.4-arm64/Resources/library/StanHeaders/include/stan/math/prim/fun/Eigen.hpp'  -D_REENTRANT -DRCPP_PARALLEL_USE_TBB=1   -I/opt/R/arm64/include    -fPIC  -falign-functions=64 -Wall -g -O2  -c foo.c -o foo.o
In file included from <built-in>:1:
In file included from /Library/Frameworks/R.framework/Versions/4.4-arm64/Resources/library/StanHeaders/include/stan/math/prim/fun/Eigen.hpp:22:
In file included from /Library/Frameworks/R.framework/Versions/4.4-arm64/Resources/library/RcppEigen/include/Eigen/Dense:1:
In file included from /Library/Frameworks/R.framework/Versions/4.4-arm64/Resources/library/RcppEigen/include/Eigen/Core:19:
/Library/Frameworks/R.framework/Versions/4.4-arm64/Resources/library/RcppEigen/include/Eigen/src/Core/util/Macros.h:679:10: fatal error: 'cmath' file not found
  679 | #include <cmath>
      |          ^~~~~~~
1 error generated.
make: *** [foo.o] Error 1

Start sampling

Under the hood the brms translates the formula to stan which looks like:

mu = alpha * pow(x, n) / (pow(k, n) + pow(x, n));
y ~ normal(mu, sigma);
alpha ~ normal(10, 3);
k ~ normal(3, 2);
n ~ normal(1, 1);

4. Review Posterior Summaries

print(hill_model, digits = 2)

 Family: gaussian
  Links: mu = identity; sigma = identity
Formula: y ~ alpha * x^n/(k^n + x^n)
         alpha ~ 1
         k ~ 1
         n ~ 1
   Data: df (Number of observations: 100)
  Draws: 4 chains, each with iter = 2000; warmup = 1000; thin = 1;
         total post-warmup draws = 4000

Regression Coefficients:
                Estimate Est.Error l-95% CI u-95% CI Rhat Bulk_ESS Tail_ESS
alpha_Intercept     9.98      0.10     9.80    10.20 1.00     2295     2345
k_Intercept         2.95      0.10     2.76     3.14 1.00     3127     2228
n_Intercept         2.01      0.14     1.74     2.28 1.00     2443     2234

Further Distributional Parameters:
      Estimate Est.Error l-95% CI u-95% CI Rhat Bulk_ESS Tail_ESS
sigma     0.52      0.04     0.45     0.60 1.00     3607     2817

Draws were sampled using sampling(NUTS). For each parameter, Bulk_ESS
and Tail_ESS are effective sample size measures, and Rhat is the potential
scale reduction factor on split chains (at convergence, Rhat = 1).

plot(hill_model)

posterior <- as.data.frame(hill_model)

You should see α, k, and n close to the true values 10, 3, and 1.

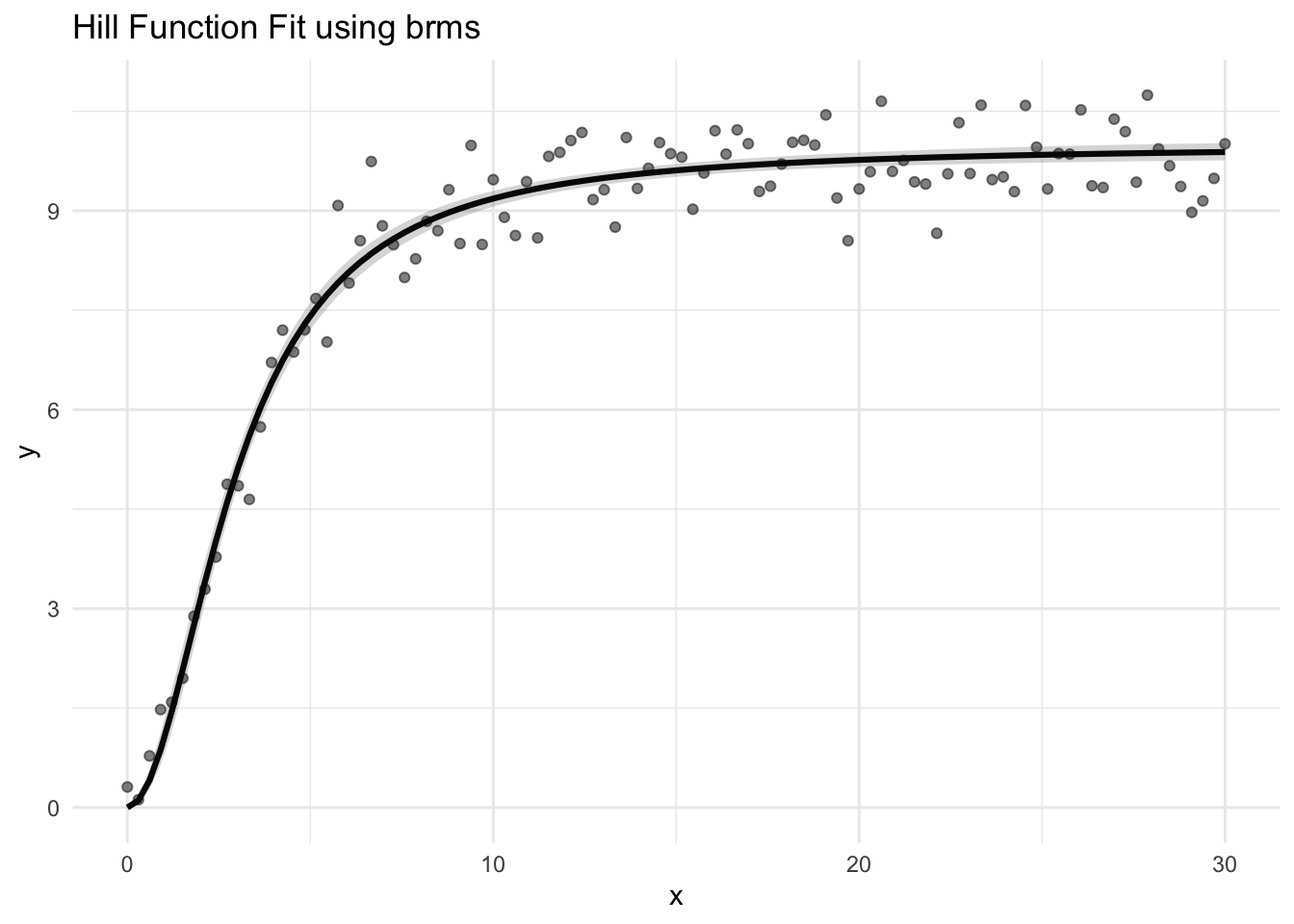

5. Posterior Predictive Curve

This mirrors McElreath’s “link” method in Statistical Rethinking:

new_x <- tibble(x = seq(0, 30, length.out = 100))

pred <- rstantools::posterior_linpred(hill_model, newdata = new_x, transform = TRUE)

pred_mean  <- apply(pred, 2, mean)
pred_lower <- apply(pred, 2, quantile, 0.05)
pred_upper <- apply(pred, 2, quantile, 0.95)

plot_df <- new_x %>%
  mutate(mean = pred_mean,
         lower = pred_lower,
         upper = pred_upper)

ggplot() +
  geom_point(data = df, aes(x, y), alpha = 0.5) +
  geom_line(data = plot_df, aes(x, mean), linewidth = 1.1) +
  geom_ribbon(data = plot_df, aes(x, ymin = lower, ymax = upper), alpha = 0.2) +
  theme_minimal() +
  labs(title = "Hill Function Fit using brms",
       y = "y", x = "x")

Notes

This is not a GLM; it’s explicitly nonlinear in the parameters.

Good priors matter: the Hill coefficient n is notoriously unstable without domain knowledge.

Plot prior predictive before sampling if possible.

Always check if posterior curves imply sane behavior for small or large x.
